Ethereum Virtual Machine (EVM)

The Ethereum Virtual Machine (EVM) is a decentralized virtual environment that executes code consistently and securely across all Ethereum nodes. Nodes run the EVM to execute smart contracts, using "gas" to measure the computational effort required for operations, ensuring efficient resource allocation and network security.

Prerequisites

Some basic familiarity with common terminology in computer science such as bytes (opens in a new tab), memory (opens in a new tab), and a stack (opens in a new tab) are necessary to understand the EVM. It would also be helpful to be comfortable with cryptography/blockchain concepts like hash functions (opens in a new tab) and the Merkle tree (opens in a new tab).

From ledger to state machine

The analogy of a 'distributed ledger' is often used to describe blockchains like Bitcoin, which enable a decentralized currency using fundamental tools of cryptography. The ledger maintains a record of activity which must adhere to a set of rules that govern what someone can and cannot do to modify the ledger. For example, a Bitcoin address cannot spend more Bitcoin than it has previously received. These rules underpin all transactions on Bitcoin and many other blockchains.

While Ethereum has its own native cryptocurrency (ether) that follows almost exactly the same intuitive rules, it also enables a much more powerful function: smart contracts. For this more complex feature, a more sophisticated analogy is required. Instead of a distributed ledger, Ethereum is a distributed state machine (opens in a new tab). Ethereum's state is a large data structure which holds not only all accounts and balances, but a machine state, which can change from block to block according to a pre-defined set of rules, and which can execute arbitrary machine code. The specific rules of changing state from block to block are defined by the EVM.

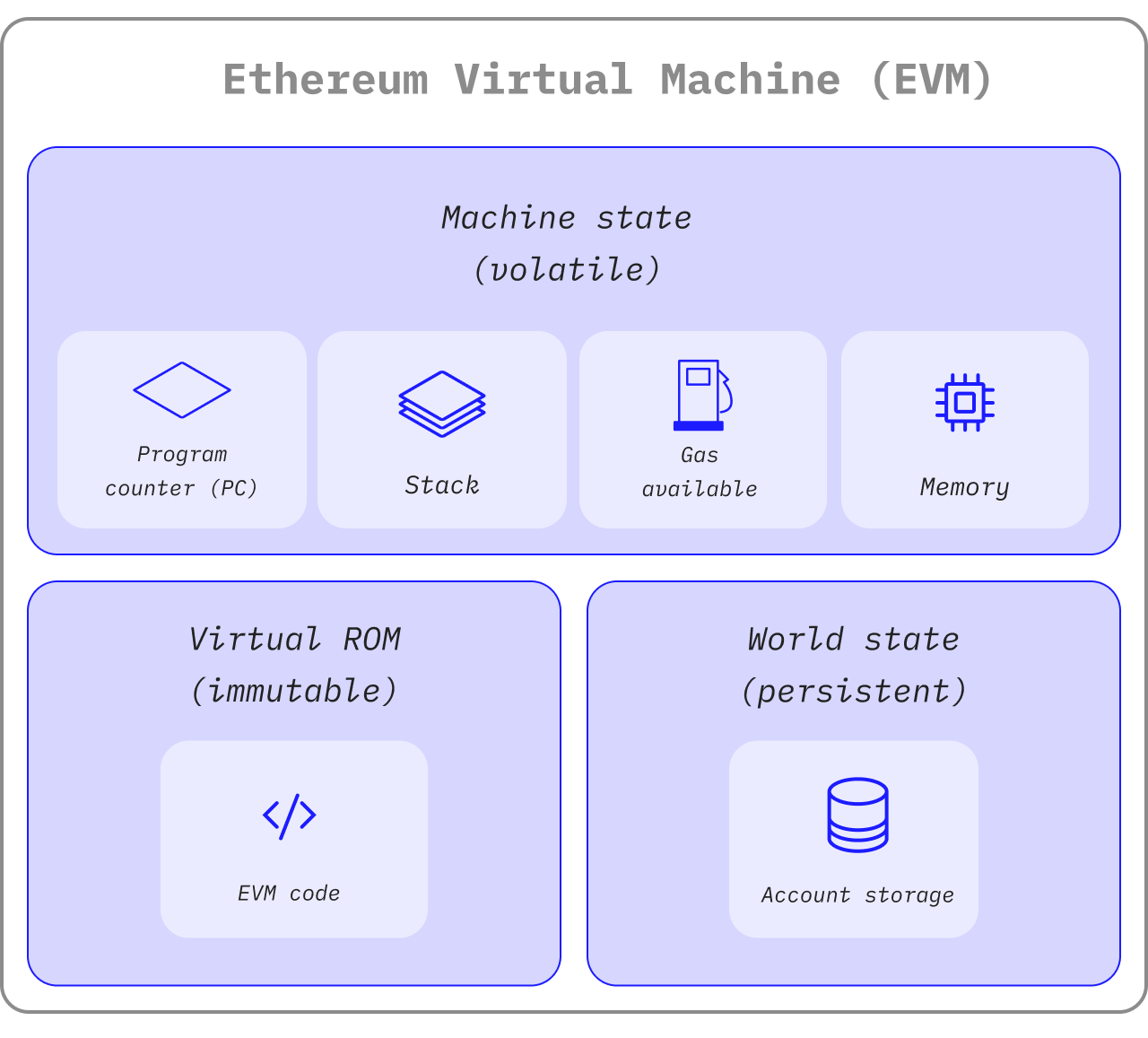

Fig. 1What survives a call

EVM codeThe contract's bytecode. The program counter steps through it one opcode at a time. Zone: Virtual ROM (immutable).Machine stateThe program counter, stack, memory and gas supply: the EVM's working state during one call. Zone: Machine state (volatile).StorageThe contract's own key-value store. Writes made here outlast the call, unless it reverts. Zone: World state (persistent).
  • EVM
  • Gas
  • Structure
4 steps

Run the call to see which parts of the EVM keep their contents when it ends.

Machine state
Empty
Code
Not loaded
Storage
No writes

A plate (world state) carries the EVM on a plinth (machine state) and, apart from it, the account's storage. The plinth holds the gas supply, the stack and memory; the EVM's code is a strip on its front, with the program counter as the lit cell. Step 1: the code is loaded, and it is immutable. Step 2: the call runs: values go on the stack, a word is written to memory, and gas drains. Step 3: SSTORE writes a value to a storage slot. Step 4: the call ends: the stack, memory and remaining gas are cleared, the code is unchanged, and the storage write remains.

What survives a call: the EVM's parts sit in three zones. Machine state is cleared when the call ends, the code never changes, and only writes to storage remain.

The Ethereum state transition function

The EVM behaves as a mathematical function would: Given an input, it produces a deterministic output. It therefore is quite helpful to more formally describe Ethereum as having a state transition function:

Y(S, T)= S'

Given an old valid state (S) and a new set of valid transactions (T), the Ethereum state transition function Y(S, T) produces a new valid output state S'

State

In the context of Ethereum, the state is an enormous data structure called a modified Merkle Patricia Trie, which keeps all accounts linked by hashes and reducible to a single root hash stored on the blockchain.

Transactions

Transactions are cryptographically signed instructions from accounts. There are two types of transactions: those which result in message calls and those which result in contract creation.

Contract creation results in the creation of a new contract account containing compiled smart contract bytecode. Whenever another account makes a message call to that contract, it executes its bytecode.

EVM instructions

The EVM executes as a stack machine (opens in a new tab) with a depth of 1024 items. Each item is a 256-bit word, which was chosen for the ease of use with 256-bit cryptography (such as Keccak-256 hashes or secp256k1 signatures).

During execution, the EVM maintains a transient memory (as a word-addressed byte array), which does not persist between transactions.

Transient storage

Transient storage is a per-transaction key–value store accessed through the TSTORE and TLOAD opcodes. It persists across all internal calls during the same transaction but is cleared at the end of the transaction. Unlike memory, transient storage is modeled as part of the EVM state rather than the execution frame, yet it is not committed to the global state. Transient storage enables gas-efficient temporary state sharing across internal calls during a transaction.

Storage

Contracts contain a Merkle Patricia storage trie (as a word-addressable word array), associated with the account in question and part of the global state. This persistent storage differs from transient storage, which is available only for the duration of a single transaction and does not form part of the account's persistent storage trie.

Opcodes

Compiled smart contract bytecode executes as a number of EVM opcodes, which perform standard stack operations like XOR, AND, ADD, SUB, etc. The EVM also implements a number of blockchain-specific stack operations, such as ADDRESS, BALANCE, BLOCKHASH, etc. The opcode set also includes TSTORE and TLOAD, which provide access to transient storage.

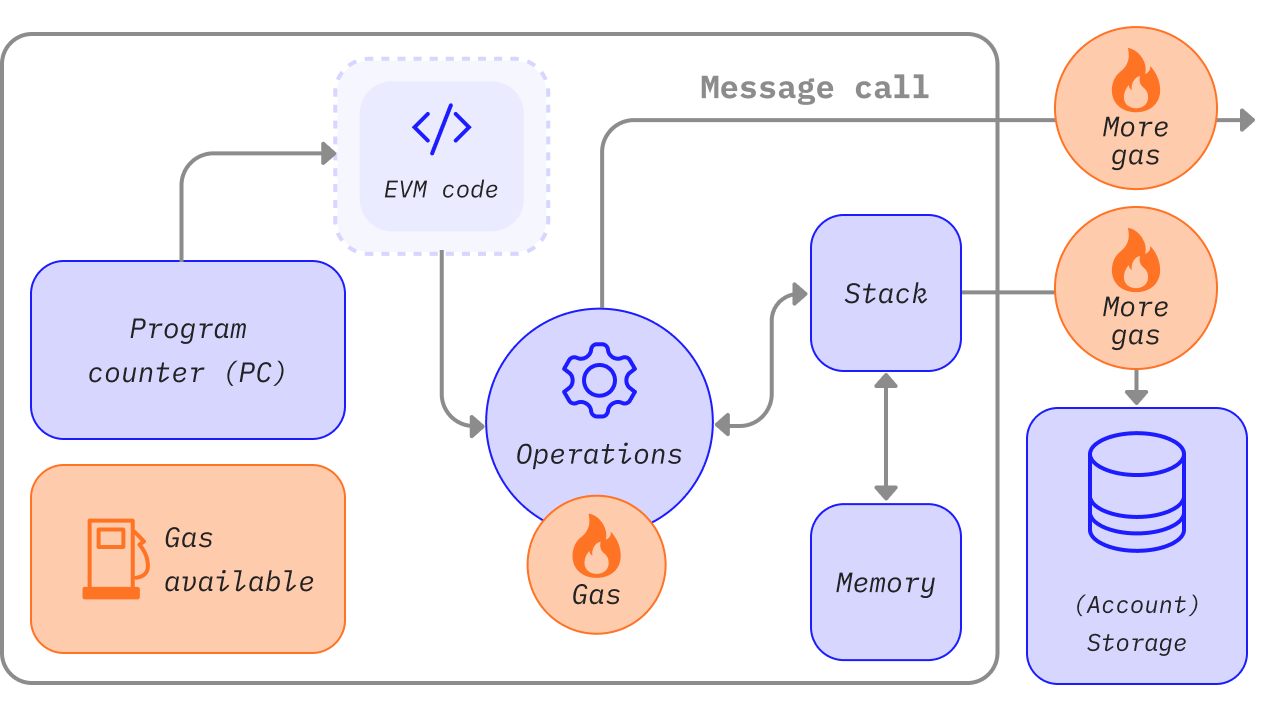

Fig. 2Gas inside the EVM

EVMThe Ethereum Virtual Machine. Its program counter steps through the contract's code, one opcode at a time.Gas supplyThe gas supply: the gas limit reserved for the transaction. Intrinsic gas and every opcode draw from it.StackShort-lived working values. Pushing one costs 3 gas.
  • EVM
  • Gas
  • Structure
Choose scenario
8 steps

Choose a scenario, then step through the code or run it.

Gas limit
50,000
Intrinsic gas
0
Program counter
–
Opcode
–
Last cost
–
Gas used
0
Gas left
50,000

A gas supply feeds the EVM through a pipe. Before any code runs, the transaction pays the base intrinsic cost of 21,000 gas. Then the program counter steps through seven opcodes: two PUSH1 put 42 and 0 on the stack, MSTORE writes 42 to memory, two more PUSH1, then SSTORE writes 42 to a new storage slot, and STOP ends the run. Each opcode draws its cost from the supply; SSTORE alone costs 22,100 gas. With too little gas, execution runs out at SSTORE: all the gas is consumed and the write is reverted.

Where gas goes inside the EVM: the transaction first pays a base intrinsic cost, then every operation draws its own cost from the gas supply. Stack and memory work is cheap; writing to storage costs the most.

EVM implementations

All implementations of the EVM must adhere to the specification described in the Ethereum Yellowpaper.

Over Ethereum's ten year history, the EVM has undergone several revisions, and there are several implementations of the EVM in various programming languages.

Ethereum execution clients include an EVM implementation. Additionally, there are multiple standalone implementations, including:
