The Graph: Fixing Web3 data querying

This time we will take a closer look at The Graph which essentially became part of the standard stack for developing dapps in the last year. Let's first see how we would do things the traditional way...

Without The Graph...

So let's go with a simple example for illustration purposes. We all like games, so imagine a simple game with users placing bets:

1pragma solidity 0.7.1;
2
3contract Game {
4    uint256 totalGamesPlayerWon = 0;
5    uint256 totalGamesPlayerLost = 0;
6    event BetPlaced(address player, uint256 value, bool hasWon);
7
8    function placeBet() external payable {
9        bool hasWon = evaluateBetForPlayer(msg.sender);
10
11        if (hasWon) {
12            (bool success, ) = msg.sender.call{ value: msg.value * 2 }('');
13            require(success, "Transfer failed");
14            totalGamesPlayerWon++;
15        } else {
16            totalGamesPlayerLost++;
17        }
18
19        emit BetPlaced(msg.sender, msg.value, hasWon);
20    }
21}
顯示全部
 複製

Now let's say in our dapp, we want to display total bets, the total games lost/won and also update it whenever someone plays again. The approach would be:

1. Fetch totalGamesPlayerWon.
2. Fetch totalGamesPlayerLost.
3. Subscribe to BetPlaced events.

We can listen to the event in Web3(opens in a new tab) as shown on the right, but it requires handling quite a few cases.

1GameContract.events.BetPlaced({
2    fromBlock: 0
3}, function(error, event) { console.log(event); })
4.on('data', function(event) {
5    // event fired
6})
7.on('changed', function(event) {
8    // event was removed again
9})
10.on('error', function(error, receipt) {
11    // tx rejected
12});
顯示全部
 複製

Now this is still somewhat fine for our simple example. But let's say we want to now display the amounts of bets lost/won only for the current player. Well we're out of luck, you better deploy a new contract that stores those values and fetch them. And now imagine a much more complicated smart contract and dapp, things can get messy quickly.

You can see how this is not optimal:

• Doesn't work for already deployed contracts.
• Extra gas costs for storing those values.
• Requires another call to fetch the data for an Ethereum node.

Now let's look at a better solution.

Let me introduce you to GraphQL

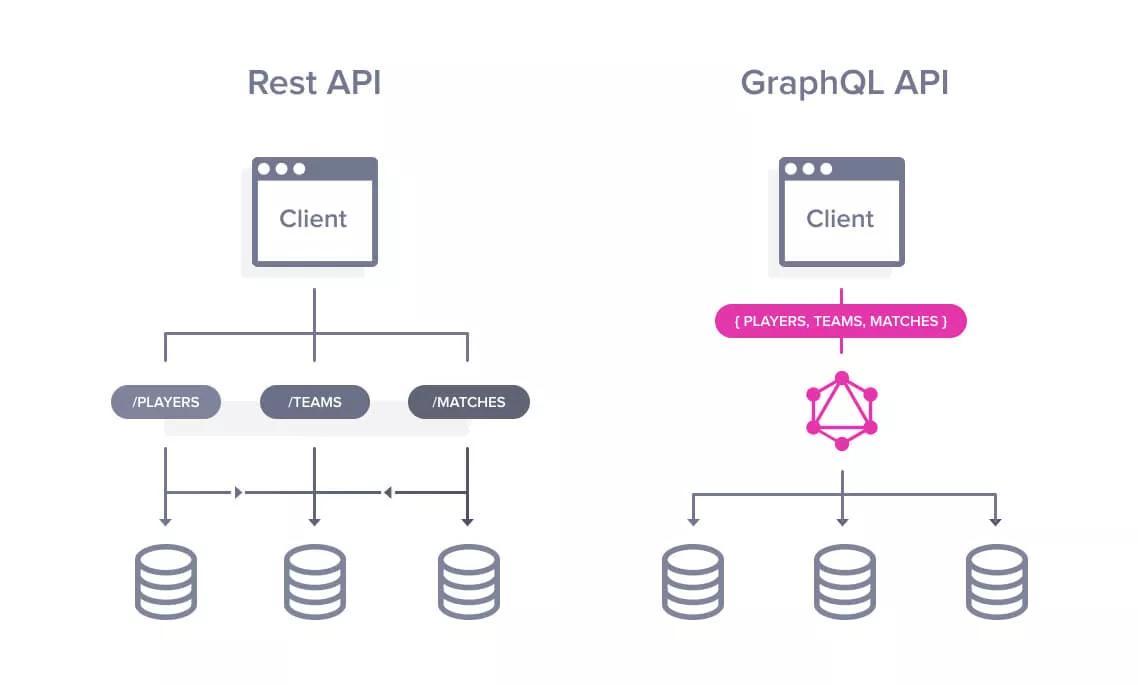

First let's talk about GraphQL, originally designed and implemented by Facebook. You might be familiar with the traditional REST API model. Now imagine instead you could write a query for exactly the data that you wanted:

(opens in a new tab)

The two images pretty much capture the essence of GraphQL. With the query on the right we can define exactly what data we want, so there we get everything in one request and nothing more than exactly what we need. A GraphQL server handles the fetching of all data required, so it is incredibly easy for the frontend consumer side to use. This is a nice explanation(opens in a new tab) of how exactly the server handles a query if you're interested.

Now with that knowledge, let's finally jump into blockchain space and The Graph.

What is The Graph?

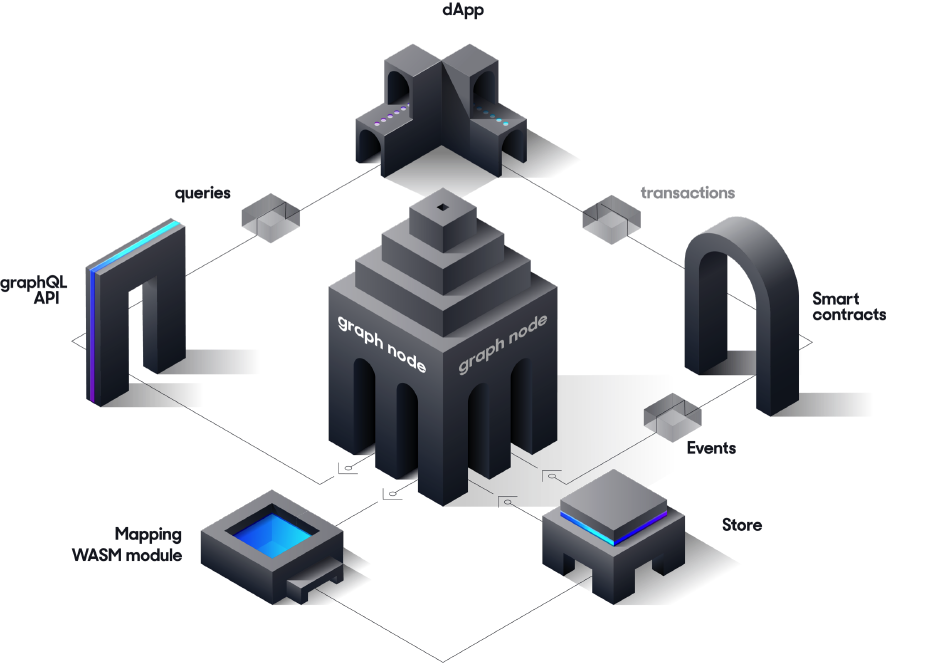

A blockchain is a decentralized database, but in contrast to what's usually the case, we don't have a query language for this database. Solutions for retrieving data are painful or completely impossible. The Graph is a decentralized protocol for indexing and querying blockchain data. And you might have guessed it, it's using GraphQL as query language.

Examples are always the best to understand something, so let's use The Graph for our GameContract example.

How to create a Subgraph

The definition for how to index data is called subgraph. It requires three components:

1. Manifest (subgraph.yaml)
2. Schema (schema.graphql)
3. Mapping (mapping.ts)

Manifest (subgraph.yaml)

The manifest is our configuration file and defines:

• which smart contracts to index (address, network, ABI...)
• which events to listen to
• other things to listen to like function calls or blocks
• the mapping functions being called (see mapping.ts below)

You can define multiple contracts and handlers here. A typical setup would have a subgraph folder inside the Hardhat project with its own repository. Then you can easily reference the ABI.

For convenience reasons you also might want to use a template tool like mustache. Then you create a subgraph.template.yaml and insert the addresses based on the latest deployments. For a more advanced example setup, see for example the Aave subgraph repo(opens in a new tab).

And the full documentation can be seen here(opens in a new tab).

1specVersion: 0.0.1
2description: Placing Bets on Ethereum
3repository: - GitHub link -
4schema:
5  file: ./schema.graphql
6dataSources:
7  - kind: ethereum/contract
8    name: GameContract
9    network: mainnet
10    source:
11      address: '0x2E6454...cf77eC'
12      abi: GameContract
13      startBlock: 6175244
14    mapping:
15      kind: ethereum/events
16      apiVersion: 0.0.1
17      language: wasm/assemblyscript
18      entities:
19        - GameContract
20      abis:
21        - name: GameContract
22          file: ../build/contracts/GameContract.json
23      eventHandlers:
24        - event: PlacedBet(address,uint256,bool)
25          handler: handleNewBet
26      file: ./src/mapping.ts
顯示全部

Schema (schema.graphql)

The schema is the GraphQL data definition. It will allow you to define which entities exist and their types. Supported types from The Graph are

• Bytes
• ID
• String
• Boolean
• Int
• BigInt
• BigDecimal

You can also use entities as type to define relationships. In our example we define a 1-to-many relationship from player to bets. The ! means the value can't be empty. The full documentation can be seen here(opens in a new tab).

1type Bet @entity {
2  id: ID!
3  player: Player!
4  playerHasWon: Boolean!
5  time: Int!
6}
7
8type Player @entity {
9  id: ID!
10  totalPlayedCount: Int
11  hasWonCount: Int
12  hasLostCount: Int
13  bets: [Bet]!
14}
顯示全部

Mapping (mapping.ts)

The mapping file in The Graph defines our functions that transform incoming events into entities. It is written in AssemblyScript, a subset of Typescript. This means it can be compiled into WASM (WebAssembly) for more efficient and portable execution of the mapping.

You will need to define each function named in the subgraph.yaml file, so in our case we need only one: handleNewBet. We first try to load the Player entity from the sender address as id. If it doesn't exist, we create a new entity and fill it with starting values.

Then we create a new Bet entity. The id for this will be event.transaction.hash.toHex() + "-" + event.logIndex.toString() ensuring always a unique value. Using only the hash isn't enough as someone might be calling the placeBet function several times in one transaction via a smart contract.

Lastly we can update the Player entity with all the data. Arrays cannot be pushed to directly, but need to be updated as shown here. We use the id to reference the bet. And .save() is required at the end to store an entity.

The full documentation can be seen here: https://thegraph.com/docs/en/developing/creating-a-subgraph/#writing-mappings(opens in a new tab). You can also add logging output to the mapping file, see here(opens in a new tab).

1import { Bet, Player } from "../generated/schema"
2import { PlacedBet } from "../generated/GameContract/GameContract"
3
4export function handleNewBet(event: PlacedBet): void {
5  let player = Player.load(event.transaction.from.toHex())
6
7  if (player == null) {
8    // create if doesn't exist yet
9    player = new Player(event.transaction.from.toHex())
10    player.bets = new Array<string>(0)
11    player.totalPlayedCount = 0
12    player.hasWonCount = 0
13    player.hasLostCount = 0
14  }
15
16  let bet = new Bet(
17    event.transaction.hash.toHex() + "-" + event.logIndex.toString()
18  )
19  bet.player = player.id
20  bet.playerHasWon = event.params.hasWon
21  bet.time = event.block.timestamp
22  bet.save()
23
24  player.totalPlayedCount++
25  if (event.params.hasWon) {
26    player.hasWonCount++
27  } else {
28    player.hasLostCount++
29  }
30
31  // update array like this
32  let bets = player.bets
33  bets.push(bet.id)
34  player.bets = bets
35
36  player.save()
37}
顯示全部

Using it in the Frontend

Using something like Apollo Boost, you can easily integrate The Graph in your React dapp (or Apollo-Vue). Especially when using React hooks and Apollo, fetching data is as simple as writing a single GraphQL query in your component. A typical setup might look like this:

1// See all subgraphs: https://thegraph.com/explorer/
2const client = new ApolloClient({
3  uri: "{{ subgraphUrl }}",
4})
5
6ReactDOM.render(
7  <ApolloProvider client={client}>
8    <App />
9  </ApolloProvider>,
10  document.getElementById("root")
11)
顯示全部

And now we can write for example a query like this. This will fetch us

• how many times current user has won
• how many times current user has lost
• a list of timestamps with all his previous bets

All in one single request to the GraphQL server.

1const myGraphQlQuery = gql`
2    players(where: { id: $currentUser }) {
3      totalPlayedCount
4      hasWonCount
5      hasLostCount
6      bets {
7        time
8      }
9    }
10`
11
12const { loading, error, data } = useQuery(myGraphQlQuery)
13
14React.useEffect(() => {
15  if (!loading && !error && data) {
16    console.log({ data })
17  }
18}, [loading, error, data])
顯示全部

But we're missing one last piece of the puzzle and that's the server. You can either run it yourself or use the hosted service.

The Graph server

Graph Explorer: The hosted service

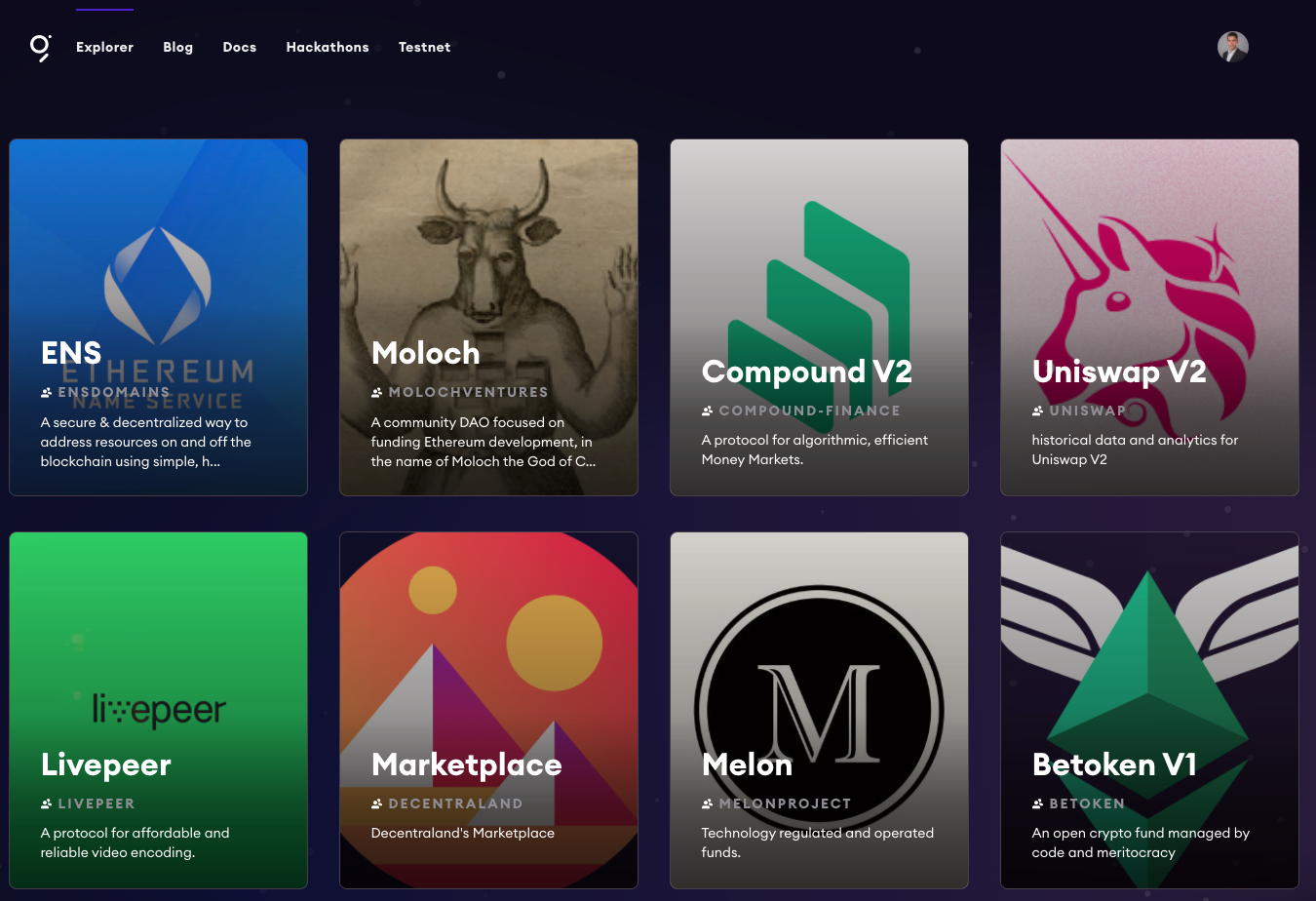

The easiest way is to use the hosted service. Follow the instructions here(opens in a new tab) to deploy a subgraph. For many projects you can actually find existing subgraphs in the explorer(opens in a new tab).

Running your own node

Alternatively you can run your own node. Docs here(opens in a new tab). One reason to do this might be using a network that's not supported by the hosted service. The currently supported networks can be found here(opens in a new tab).

The decentralized future

GraphQL supports streams as well for newly incoming events. These are supported on the graph through Substreams(opens in a new tab) which are currently in open beta.

In 2021(opens in a new tab) The Graph began its transition to a decentralized indexing network. You can read more about the architecture of this decentralized indexing network here(opens in a new tab).

Two key aspects are:

1. Users pay the indexers for queries.
2. Indexers stake Graph Tokens (GRT).
